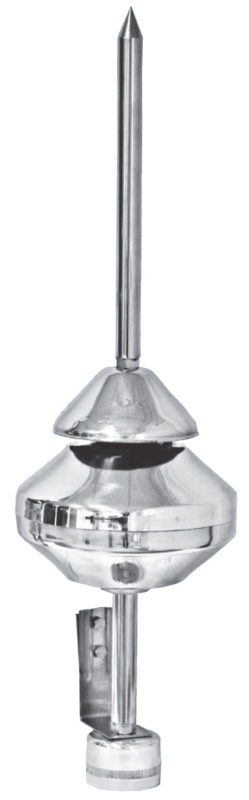

ESE Type Lightning Arrester
Description
ESE type lightning arrester is active lightening rod’s durable design and mechanic anatomy which optimize protection level provides an effective protection against lightening in a max. 214m diameter protection field. It is stainless and waterproof and it is produced with quality standards.
| Length | 650mm | |||
| Width | 220mm | |||
| Chamber Diameter | 220mm | |||
| Chamber Length | 90mm | |||
| Air Terminal | ϕ 22mm(Inox) Stainless Chromium | |||
| Connection Adapter | 5mm Aluminum (Appropriate for 2 inch) | |||
| Weight | 3.3 kg | |||
| Packaging | Original Colored Box | |||
| Working Principle | E.S.E (Early Streamer Emission) | |||
| Physical Structure | Made of Stainless Chromium | |||
| Certificates | CEO, ISO 9001, ODTU (Turkiye), CPRI(Central Power Research Institute), Hindustan,(India) LCOE, ICMET | |||
| Garanti Warranty | T. C. Certified by Ministry of Industry and Trade 30 Years Warranty | |||
| ESE Warning Time Based on (NFC 17-102 Standards) | 60 μs | |||
| Protection Radius Based on 5 Meter Height | Level 1 | Level 2 | Level 3 | Level 4 |
| 79 | 86 | 97 | 107 | |
